Description

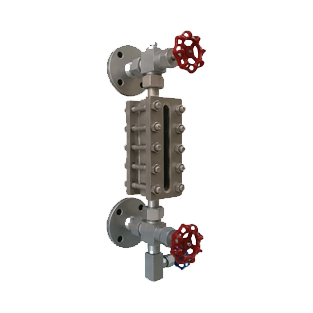

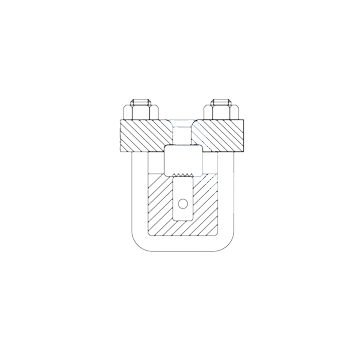

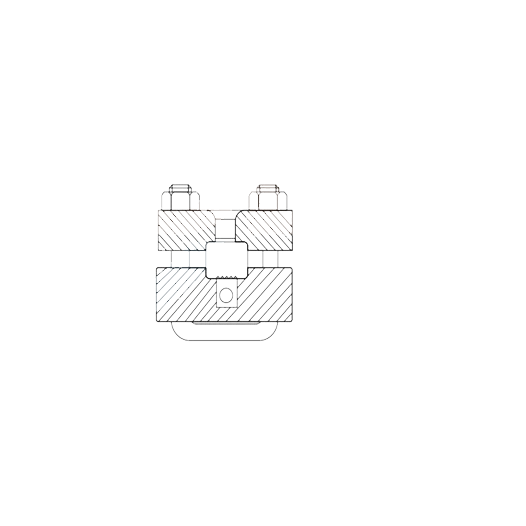

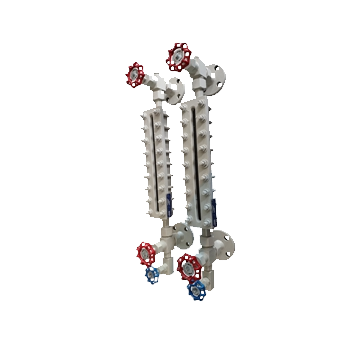

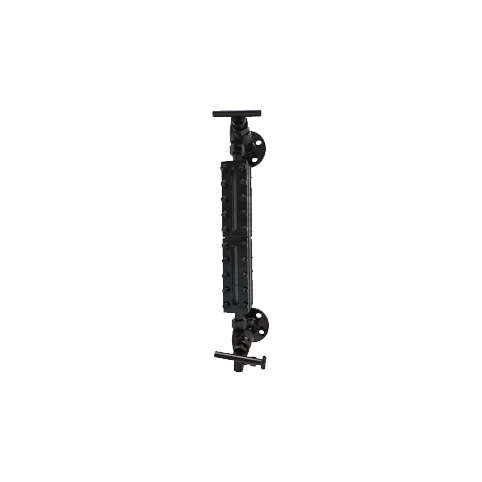

The Reflex Liquid Level Gauge
The gauge is used to monitor the liquid level in a vessel or tank. It features a gauge glass with three V-shaped grooves. Due to the prism effect, the gaseous phase appears white, while the liquid phase appears darker because the diffused reflection is minimized. This contrast makes the liquid level clearly visible.

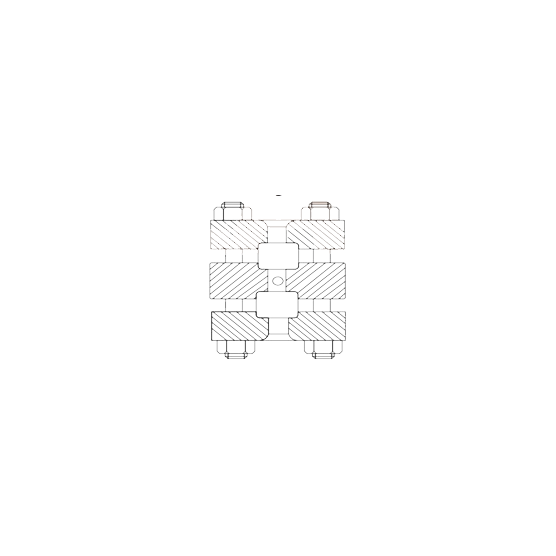

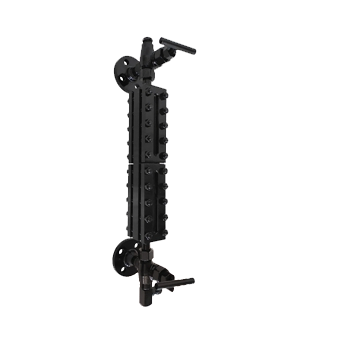

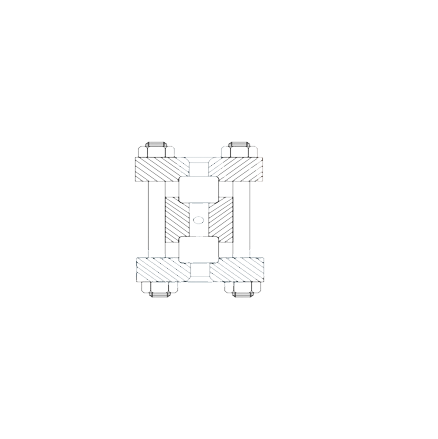

See-Thru (Transparent) Liquid Level Gauge
This gauge is designed to measure the level, color, and clarity of the liquid in a vessel or tank. It features two layers of gauge glass and is constructed to allow users to view through to the opposite side. To protect the glass from alkaline corrosion, the gauge can be fitted with mica or fluorine resin. Additionally, a built-in lighting system enhances visibility, making it easier to measure the liquid level. Its structure is also more resistant to pressure compared to the reflex liquid level gauge.
| SW-TBS-F | SW-TBS-A | SW-UI-CV-F-HF | SW-UI-CV-F-HT | SW-RFL-40C | |

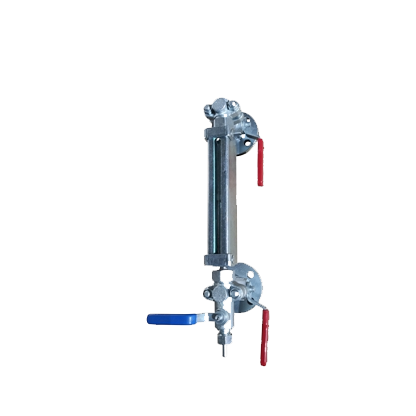

| Type | Reflex | Transparent | High pressure reflex | High pressure Transparent | 90 degrees Quick open/close |
| C-C (mm) | 300–3600 | 285–2590 | |||
| Visible Length (mm) | 95–3360 | 141–2433 | |||
| Gauge Material | CS, SS304, SS316L, Ti, etc; | Cast steel | |||

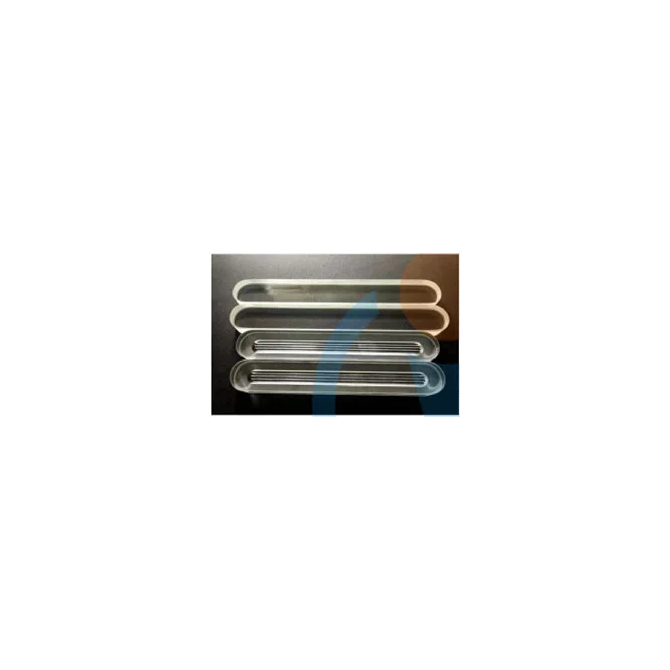

| Glass Size | A1–A9, B1–B9 | A1–A9 | |||
| Glass Material | Borosilicate; Alumina-silicate | ||||

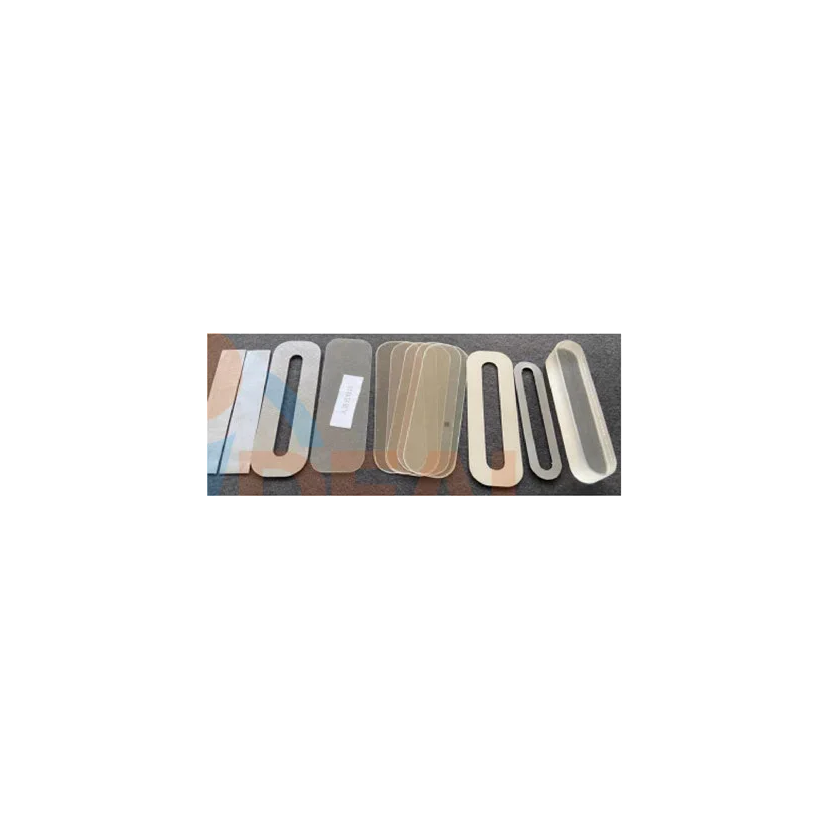

| Gasket Type | Graphite composite gasket; Non-Asbestos gasket; Mica seal components | ||||
| Suitable Temperature | ≤ 450 °C | ||||
| Working Pressure (Bar) | 40 (Groove glass) 100 (Plate glass) | 100 (Plate glass) | 40 (Groove glass) 160 (Plate glass) | 160 (Plate glass) | 40 (Groove glass) |

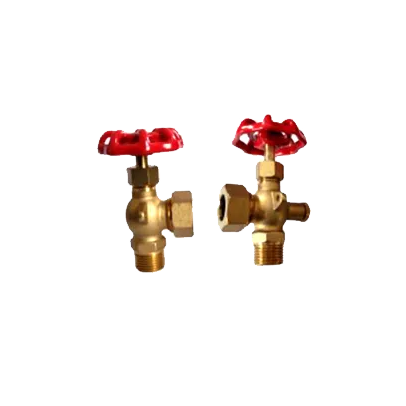

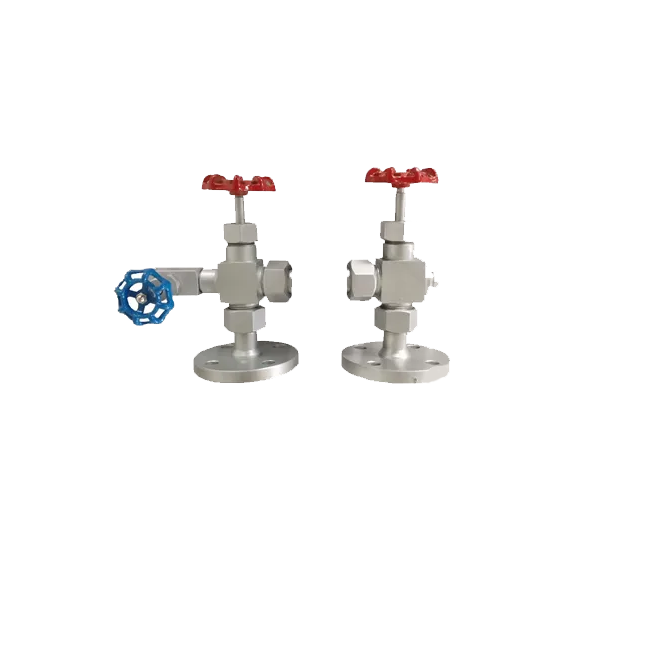

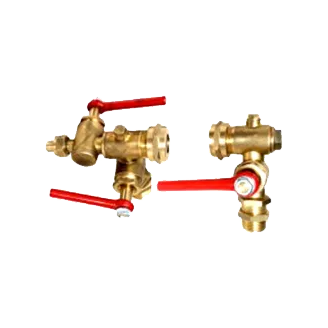

| SW-UI-CV-F | SW-UI-CV-S | SW-RFL-40 | ||

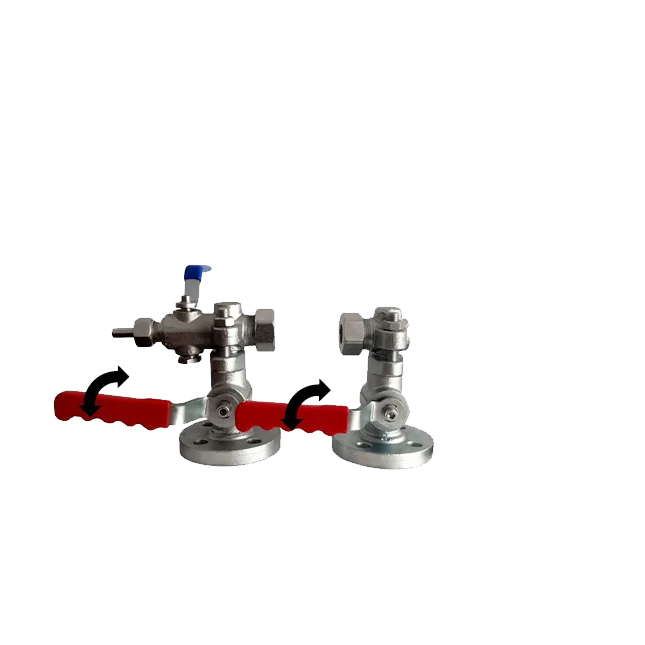

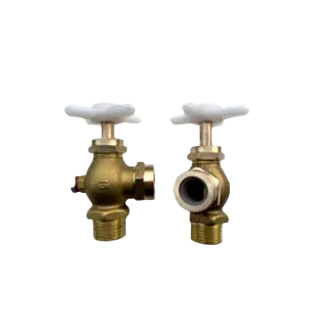

| Type | Offset Valve 360-degree turn | Straight Gauge Valve 360-degree turn | 90 degree Quick Open/Close Gauge Valve | |
| Valve Body | Forging steel | CS, SS304, SS316L, Ti | Cast steel | |
| Valve Rod Material | 2Cr13 / SS316L | |||
| Sealing Material | Graphite | |||
| Working Temperature | ≤ 450 °C | |||
| Working Pressure (Bar) | 40 (Groove glass) 160 (Plate glass) | 40 (Groove glass) 100 (Plate glass) | 40 (Groove glass) | |
| Connection Mode | Flange; Thread; Welding | Flange: DN15 DN20 DN25, 3/4″ 1″ 1-1/4″ | ||
| Connection Standard | ANSI, DIN, GB, JIS; NPT, BSPT, G, ZG | ANSI, DIN, GB, JIS; | ||
| Apply To | TBS-F / TBS-A / TBS-HR / TBS-HT / RFL-40C | TBS-F / TBS-A / RFL-40C | ||
